Model Number : FSP-FDC-03 Series
Type : Fiber Distribution Cabinet
Place of Origin : Hangzhou China
Brand Name : Hangzhou China
Use : Hangzhou China
Warranty Time : 10 Years
Network : None
Shell Material : SMC
Inner structure Material : Stainless
Color : gray
Capacity : 288/576
Packaging Details : wooden pakage or carton pakage with pallet
Port : Shanghai/Ningbo
Supply Ability : 2000 Unit/Units per Month
MOQ : 5 units
Price : $345.00 - $600.00/units
Model | FSP-FDC-03 Series |
Material | SMC & Stainless Steel |
Color | Gray (Default RAL 7035) |
Splice Capacity | 144~1152 Cores |
Adapter Type | SC / LC / FC etc. |
Adaptor Capacity | 144~1152 Ports |
Installation Method | Ground-mounted (Pre-installed fixed base) |
Category | Size:H×W×D(MM) | Cable Port | Adaptor Port | Splitter Capacity | Parking Port |
144 | 1035×550×310 | 11 Ports | 144 Ports | 12 Pcs | 40 Ports |
288 | 1590×750×360 | 12 Ports | 288 Ports | 24 Pcs | 40 Ports |
576 | 1590×750×620 | 24 Ports | 576 Ports | 48 Pcs | 80 Ports |
1152 | 1550×1460×620 | 48 ports | 1152 Ports | 96 Pcs | 160 Ports |
![]() |

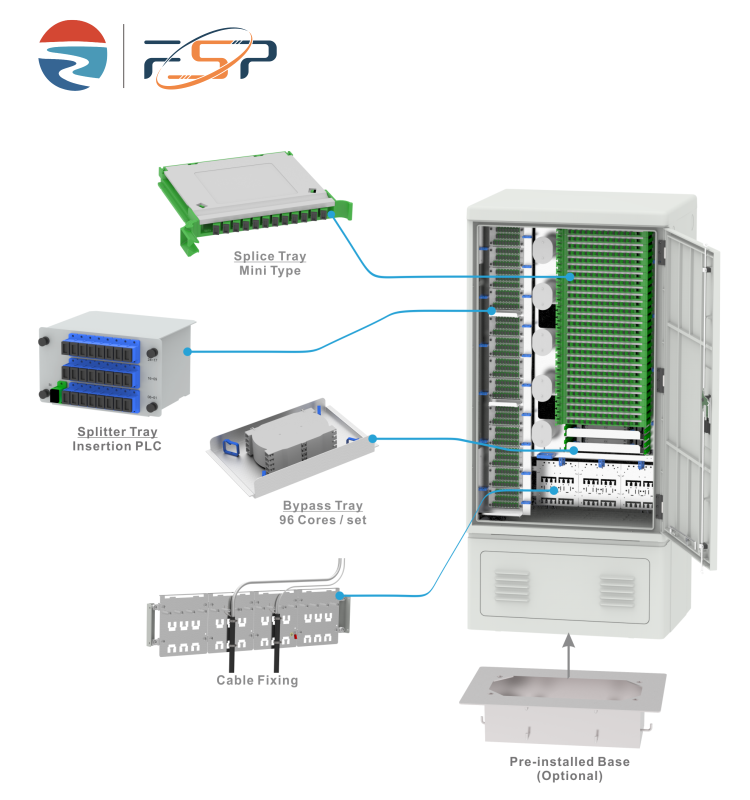

SMC Shell IP65 FSP FDC 03 Outdoor Optic Cross Connect Splitters Splicing Tray Cabinet Images |
